Card Terminal Configuration

The Card Terminal is a type of equipment used to manage payment or interaction terminals within the system. It allows you to register devices, configure operational parameters, execute actions, and monitor events generated during usage.

---

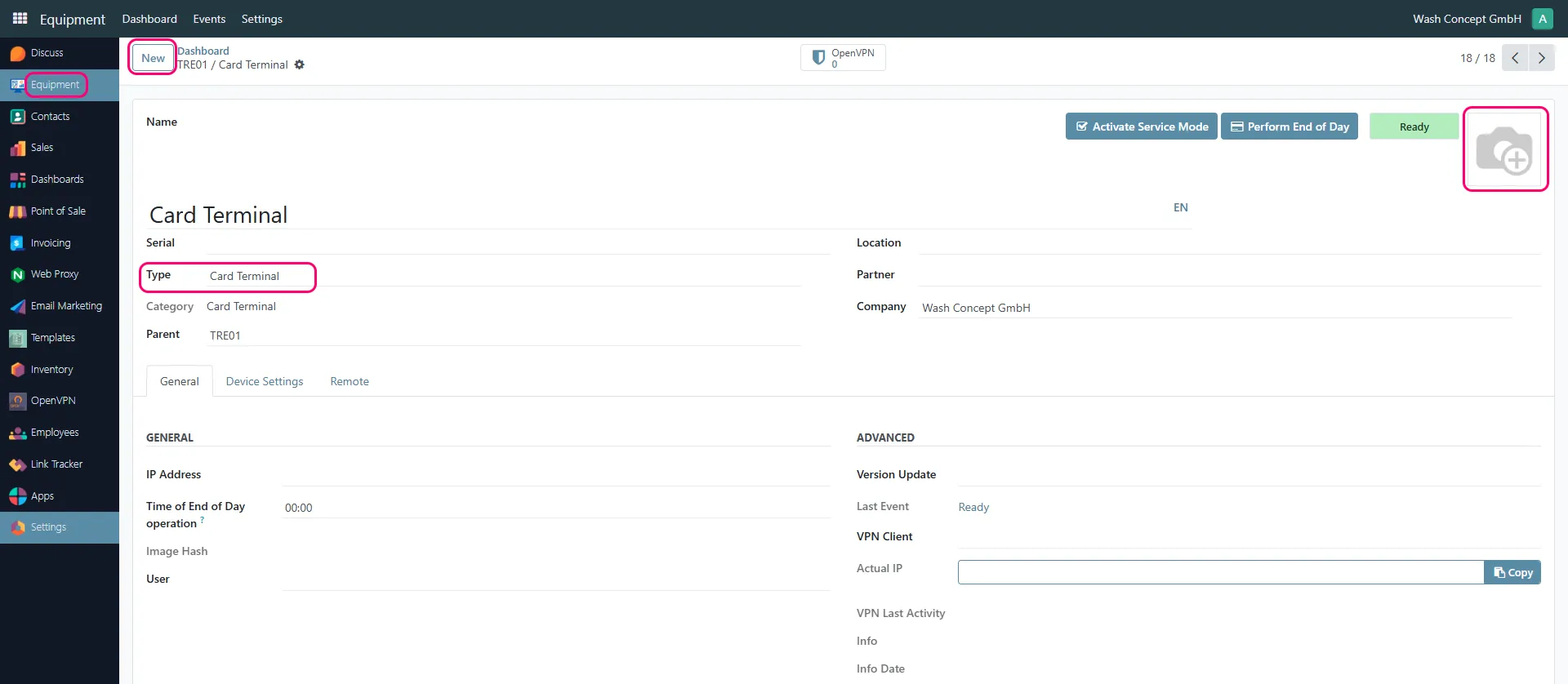

How to Create a Card Terminal

1. Go to:
   • Equipment
2. Click New
3. In the field Type, select Card Terminal
4. Enter:
   • Name of the device
   • other required fields (if applicable)
5. Optionally:
   • upload or assign an image of the device
6. Click Save

---

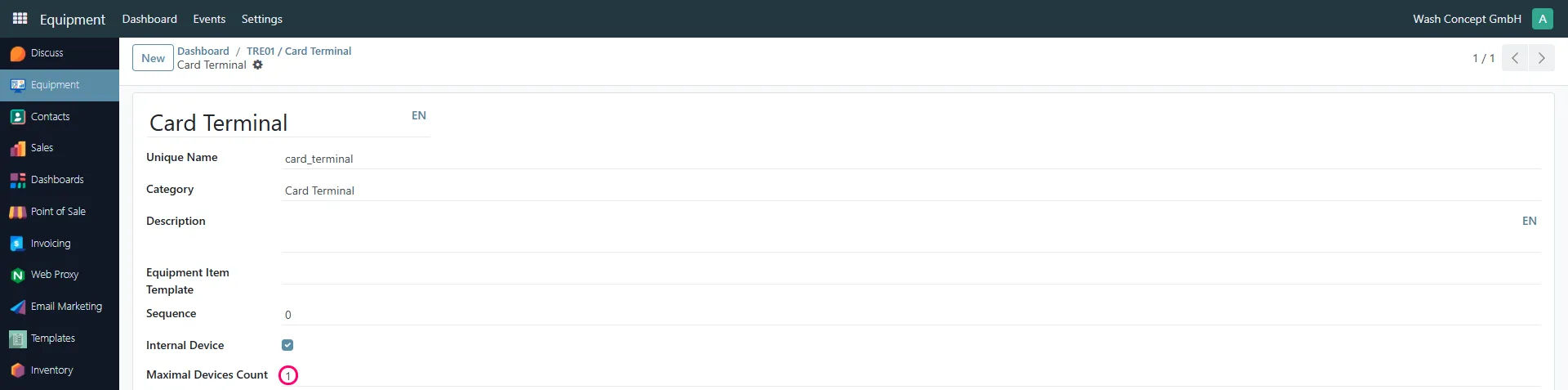

Default Limitation

By default, the system allows creating only one device of the Card Terminal type.

To change this limit:

1. Open the Card Terminal equipment type configuration
2. Locate the field:
   • Maximal Devices Count
3. Set the desired number of devices
4. Save changes

---

Device Actions

From the equipment form, the following actions are available:

• Activate Service Mode
• Perform End of Day

These actions allow direct control of the terminal behavior.

---

Event Monitoring

To monitor terminal activity:

1. Click the event indicator/button near the device image
   (shows the latest status, e.g., Ready)
2. You will be redirected to the Events page

---

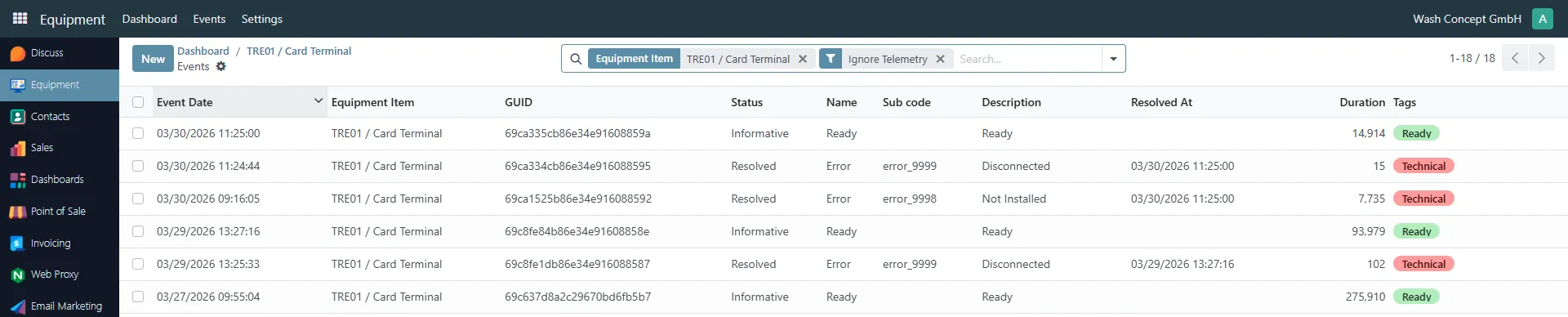

Events Page

The events list contains:

• Event Date
• Equipment Item
• GUID
• Status (Informative / Resolved)
• Name (e.g., Ready, Error)
• Sub code
• Description
• Resolved At
• Duration
• Tags (e.g., Technical)

This provides full visibility into terminal operations and issues.
